Old August 19th, 2011, 12:01 PM   #1

Join Date: Aug 2011
Location: Hawaii
Posts: 11
toku58 is on a distinguished road
Picture thread! Show off your build.

Hey guys I figured I'd create a thread where someone can see everyone's build and share ideas.
So here goes. Post up pictures of your custom build, and post details that will help new'b's like myself. i.e. Links to where you purchased the custom parts would also be a bonus.
Thanks guy!



toku58 is offline
Advertisements
Old August 19th, 2011, 03:09 PM   #2

JaPes's Avatar

Join Date: Jul 2011
Location: NW Illinois
Posts: 546
JaPes is on a distinguished road
Bought new last month, and it looked like:



Now it looks like:



Looks pretty stock, until you see:



I'm not one to build an "ultimate" 10/22. I like the wood stock. I like the barrel band. I love the way a 10/22 carbine looks. I just want to ameliorate the stock deficiencies.
  • Power Custom Hammer & Sear
  • Volquartsen Exact Edge Extractor
  • PWS T3 10/22 Magazine Release Lever
  • Urethane Bolt Buffer

Most of that stuff I got off Brownell's or E-Bay.

The bolt has been worked:
  • Adjusted head space to .043 +/-.0005 and adjusted the firing pin to protrude .030 +/- .003
  • Enlarged the radius where the hammer contacts during cycling and polished that area to a high shine.
  • Cross pinned the firing pin with a 3/32 hardened dowel pin, and added a chamfer to the top of the charging handle slot,which makes finding the slot during reassembly much easier.
  • Polished the ejector plunger.
  • Jeweled the ejection port side.
The work was done by Pete Lexy (click for site).

I added a BSA 3-9X32 scope that came with rings. It's not expensive. It's decent for what I need, and my current skill level.

10/22 @ 76ft, CCI Mini-Mag HP, sandbag rest, scope, no mods, 20 rounds:



Same distance & ammo, scope, + mods, 10 rounds:



My 10/22's potential now exceeds my current skill level. Before I do anything else to it, I have to improve my shooting skills.

Now if you really want to see some really crazy $$$ builds, head over to rimfirecentral.com . There are some really awesome builds there. Some 10/22 builds found there don't have any Ruger factory parts. Entire 10/22's built from aftermarket parts. Cool stuff.

Last edited by JaPes; August 19th, 2011 at 03:17 PM.
JaPes is offline
Old August 19th, 2011, 03:32 PM   #3

BlkHawk73's Avatar

Join Date: Nov 2008
Location: Maine
Posts: 5,433
BlkHawk73 is on a distinguished road
Have too many with decent pics. Have to change that I guess. Will be back in a couple days to fill some bandwidth.
BlkHawk73 is offline
Old August 19th, 2011, 07:53 PM   #4

InfamousJ's Avatar

Join Date: May 2011
Location: MPLS
Posts: 234
InfamousJ is on a distinguished road
Noob rule #1 when requesting pics in a topic...always post pics of your own stuff first



Here's one I built a few weeks ago...

Last edited by BuckJM53; August 19th, 2011 at 08:09 PM. Reason: Fixed your image link
InfamousJ is offline
Old August 19th, 2011, 08:12 PM   #5
Moderator

BuckJM53's Avatar

Join Date: Apr 2008
Location: SW Ohio
Posts: 11,764
BuckJM53 has a spectacular aura aboutBuckJM53 has a spectacular aura about
Quote:
Originally Posted by InfamousJ View Post
Noob rule #1 when requesting pics in a topic...always post pics of your own stuff first

Here's one I built a few weeks ago...
Rule #2 ... If you're going to pick on the noobie for not posting his own pictures, always be sure to post your own picture link correctly (I fixed it for you )
BuckJM53 is offline
Old August 20th, 2011, 03:25 AM   #6

Join Date: Jul 2011
Location: North Texas
Posts: 14
GhostWriter is on a distinguished road

GhostWriter is offline
Old August 20th, 2011, 06:38 AM   #7

InfamousJ's Avatar

Join Date: May 2011
Location: MPLS
Posts: 234
InfamousJ is on a distinguished road
Quote:
Originally Posted by BuckJM53 View Post
Rule #2 ... If you're going to pick on the noobie for not posting his own pictures, always be sure to post your own picture link correctly (I fixed it for you )
Musta been drunk, it looked fine to me
InfamousJ is offline
Old August 20th, 2011, 08:44 AM   #8
Moderator

BuckJM53's Avatar

Join Date: Apr 2008
Location: SW Ohio
Posts: 11,764
BuckJM53 has a spectacular aura aboutBuckJM53 has a spectacular aura about
Quote:
Originally Posted by InfamousJ View Post
Musta been drunk, it looked fine to me
Musta been ....You had an extra line with [url] tags on it that kept the image from displaying properly.
BuckJM53 is offline
Old August 20th, 2011, 02:33 PM   #9
First initial, last name.

DDelambre's Avatar

Join Date: May 2011
Location: Albuquerque
Posts: 2,039
DDelambre is on a distinguished road
Nice idea for a thread. I have a few ideas and parts floating around my head/house respectively. I'll post pics of what I'm going to do when I do it!
DDelambre is offline
Old August 20th, 2011, 06:48 PM   #10

Join Date: Apr 2009
Location: north of Detroit
Posts: 3,511
reverendg is on a distinguished road




reverendg is offline
Old August 20th, 2011, 07:53 PM   #11

Q5Grafx's Avatar

Join Date: Aug 2011
Location: Phoenix
Posts: 48
Q5Grafx is on a distinguished road

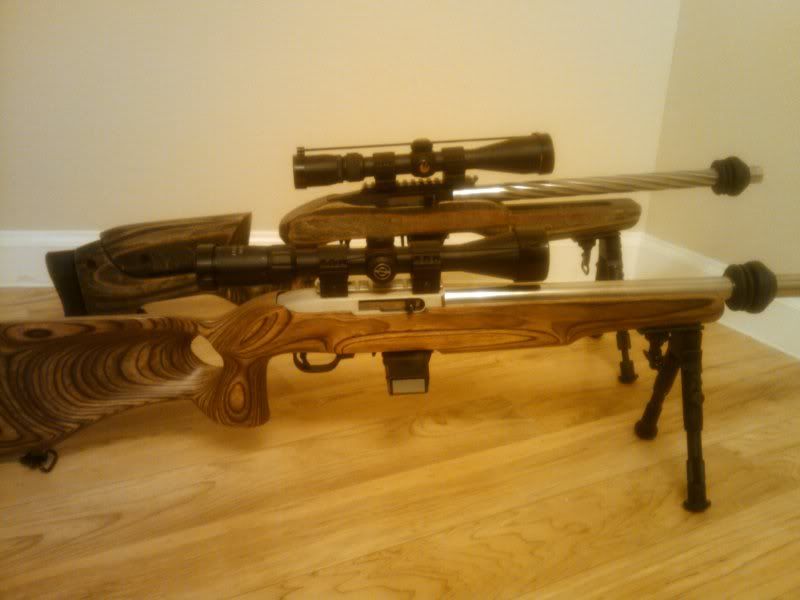

(rear) FA Ent Stock (Reworked)
KIDD Reciever, Bolt, Pins and Buffer
TI Trigger Group
Volq Ejector
Hi Desertdog 16.5" threaded helical fluted barrel
UTG SWAT profile bipod
Uncle Mikes Quick Disconnect Sling Swivels
Alangator Trimag
Limbsaver Resonance Reducer
Nikon 3-9x40mm Prostaff Scope

(Front)
Stock Ruger 10-22 with
Boyds Nutmeg Blaster Stock
KIDD Buffer
UTG SWAT profile Bipod
Uncle Mikes quick disconnect Sling Swivels
AR-7.com 20" match grade barrel with compensator
Q5Grafx is offline
Old August 20th, 2011, 09:15 PM   #12

luvtofish40's Avatar

Join Date: Feb 2011
Location: canada
Posts: 363
luvtofish40 is on a distinguished road
This is my SR 22, looks pritty stock but shoots like a dream! The build has,
  1. Kidd two stage trigger
  2. Kidd bolt
  3. Kidd cocking handle and guide rod with spring kit
  4. Kidd match barrel
  5. Kidd bolt buffer

Last edited by luvtofish40; October 3rd, 2011 at 12:20 PM.
luvtofish40 is offline
Old August 21st, 2011, 08:55 AM   #13

donwalk's Avatar

Join Date: Jul 2011
Location: southern california
Posts: 126
donwalk is on a distinguished road
my "build"

this old (Made in 1971) 10/22 has 'been around' in several states of apparel but here is the one i like best on it. the original stock split and broke so i had to replace it and here's the configuration that the most comfortable for my taste.

i drilled and tapped in 1/4"x20, stainless steel, button head set screws into the receiver to anchor it solidly in the stock and used a cheek piece i made from a plastic planter i shaped via heat gun to fit the stock so eye-to-red dot would have proper alignment and I've since switched to the trimag magazine ammo feed system




Last edited by donwalk; August 23rd, 2011 at 10:20 AM.
donwalk is offline
Old August 22nd, 2011, 11:02 AM   #14

Join Date: Jun 2011
Location: TN:US
Posts: 30
kg4tyr is on a distinguished road
Charger Build



Kidd Barrel
Kidd Bolt
Kidd Charging handle
Kidd 2 Stage Trigger
Hipshot Stock

Only original parts are the reciever and magazine.
kg4tyr is offline
Old August 23rd, 2011, 02:22 PM   #15

the neutralizer's Avatar

Join Date: Mar 2011
Location: South Carolina
Posts: 73
the neutralizer is on a distinguished road
so many nice guns...
the neutralizer is offline
